Building pandiono (1992-1996)

amsterdam

1m big model of TR40, dreaming of pandiono to be

amsterdam

1m big model of TR40, dreaming of pandiono to be

amsterdam

1m big model of TR40, dreaming of pandiono to be

utrecht

spring 1992, de designs of the TR40 arrive. Trijnie, a martime design engineer thinks: is this the cross section of the whole boat ??

RMY yard - NDSM - Amsterdam

within this frames the main hull of TR40 will be build

RMY yard - NDSM - Amsterdam

this cross section setup of the mainhull looks more real. (Simon Rhebergen of Rhebergen Multihull Yachts)

RMY yard - NDSM - Amsterdam

cutting balsa strips for the bottom of the TR40

RMY yard - NDSM - Amsterdam

the hull showes it shape, beautiful !!

RMY yard - NDSM - Amsterdam

wooden frames in which the glass part of the beams is made. (nov 1992)

RMY yard - NDSM - Amsterdam

look at the thin connections with the floats and the heavy pack of glass at the hull. That is counter intuitive.

RMY yard - NDSM - Amsterdam

the thick, strong glass in the middle, strange but okay

RMY yard - NDSM - Amsterdam

2 beams, closed with a foam core at the sides. (145kg each)

RMY yard - NDSM - Amsterdam

the end which will be mounted into the floats

RMY yard - NDSM - Amsterdam

the inside of deck with reinforments integrated in the foam

RMY yard - NDSM - Amsterdam

sept 1992, constructing the interior

RMY yard - NDSM - Amsterdam

the place of the front bed

RMY yard - NDSM - Amsterdam

from inside seen, the entrance to the cabin

RMY yard - NDSM - Amsterdam

preparing water tanks in the bilge

RMY yard - NDSM - Amsterdam

the kitchen gets it shape

RMY yard - NDSM - Amsterdam

preparing the upper side of the deck

RMY yard - NDSM - Amsterdam

walking on the ceiling from inside (nov 1992)

RMY yard - NDSM - Amsterdam

glueing the planks of the daggerboard together

RMY yard - NDSM - Amsterdam

constructing the shape of the daggerboard. has to be done very precise. a small error has a big influence

RMY yard - NDSM - Amsterdam

june 1993, backing the daggerboard with an air heater to strengthen the glass-epoxy layer

RMY yard - NDSM - Amsterdam

the outer frames are removed. the hull will be turned over to apply glass at the outside

RMY yard - NDSM - Amsterdam

walking on the ceiling from inside. the interior is already finished before closing the deck (nov 1992)

RMY yard - NDSM - Amsterdam

the endless job starts: fairing the skin of the hull with a filler/epoxy mix

RMY yard - NDSM - Amsterdam

the main hull is coated with epoxy/filler plaster. The fairing and sanding can begin

RMY yard - NDSM - Amsterdam

sanding the TR40, days and days hard working to remove pumps and valeys in the fairing

RMY yard - NDSM - Amsterdam

march 1993, the bottem is faired, TR40 is back on its feet. the deck and floats will get the same treatment

RMY yard - NDSM - Amsterdam

making glas-foam-epoxy panels at home: step 1 applying epoxy for a smooth surface

RMY yard - NDSM - Amsterdam

step 2: apply fibre glas cloth which absorbs the epoxy

RMY yard - NDSM - Amsterdam

step 3: apply lots of epoxy to glue the next layer, the foam core

RMY yard - NDSM - Amsterdam

step 5: after the foam is applied the upper side is soaked with a epoxy-filler mixuture

RMY yard - NDSM - Amsterdam

step 5: after the foam is applied the upper side is soaked with a epoxy-filler mixuture

RMY yard - NDSM - Amsterdam

in 2 hours a panel is produced. time to go to bed. +/- 40 panels have been produced in our house in utrecht

RMY yard - NDSM - Amsterdam

time to start working on the back of the boat

RMY yard - NDSM - Amsterdam

designing: how to shape the cockpit seats?

RMY yard - NDSM - Amsterdam

shaping the upper sides of the cockpit

RMY yard - NDSM - Amsterdam

may 1993, thinking about the ergonomics of the cockpit

RMY yard - NDSM - Amsterdam

the daggerboard is finshed, now the daggerboard case has to be shaped

RMY yard - NDSM - Amsterdam

the two halves of the case

RMY yard - NDSM - Amsterdam

forming (bending) and closing of the daggerboard case over the daggerboard

RMY yard - NDSM - Amsterdam

the start constructing the floats (amas)

RMY yard - NDSM - Amsterdam

designer tony grainger and trijnie. this TR40 is the first design build in foam/epoxy and he is impressed by the stiffess of the construction

RMY yard - NDSM - Amsterdam

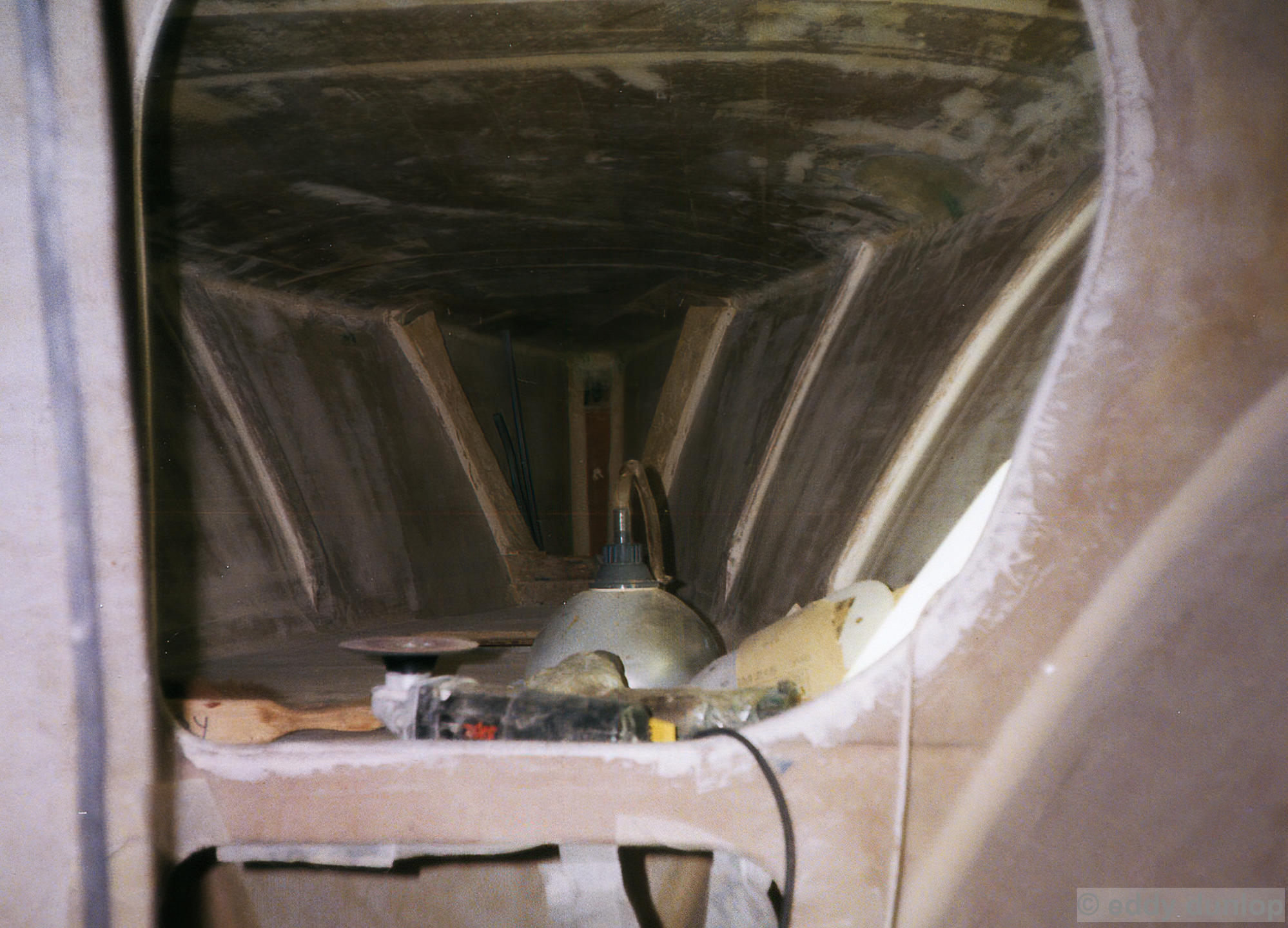

the inside of a float

RMY yard - NDSM - Amsterdam

1993, one summer sanding and fairing floats

RMY yard - NDSM - Amsterdam

romantic scene but hard work

RMY yard - NDSM - Amsterdam

making the fairing ourselves should saved fl4500 :)

RMY yard - NDSM - Amsterdam

we learn how to construct in foam

RMY yard - NDSM - Amsterdam

month of work, we did not save anything

RMY yard - NDSM - Amsterdam

Trijnie relaxing

RMY yard - NDSM - Amsterdam

this is a very complicated shape we experience

RMY yard - NDSM - Amsterdam

the stronger than designed bulkheads for fixing the beams.

RMY yard - NDSM - Amsterdam

the bulkheads inside the floats. our construction is much stronger the designed but also heavier

RMY yard - NDSM - Amsterdam

this construction we trust

RMY yard - NDSM - Amsterdam

the floats are mounted to the end of the beams

RMY yard - NDSM - Amsterdam

this looks special :)

RMY yard - NDSM - Amsterdam

closing the floats forever

RMY yard - NDSM - Amsterdam

and more plastering, fairing and plastering

RMY yard - NDSM - Amsterdam

the main construction of the TR40 is finished, however years more work still

RMY yard - NDSM - Amsterdam

the mast support, with daggerboard case integrated

RMY yard - NDSM - Amsterdam

the wooden mast support, with the daggerboard case integrated

RMY yard - NDSM - Amsterdam

looking forward, into the front of the bow

RMY yard - NDSM - Amsterdam

the living area in the front cabin takes form

RMY yard - NDSM - Amsterdam

oct 1993, it looks great and elegant, but more years to work

RMY yard - NDSM - Amsterdam

will this be the correct curve?? this construction is extremely complicated to imagin.

RMY yard - NDSM - Amsterdam

the after cabin gets it shape

RMY yard - NDSM - Amsterdam

the after cabin, after a lot of thinking, the result looks good

RMY yard - NDSM - Amsterdam

summer 1994, TR40 encounters daylight the first time while an other boat has to leave the yard

RMY yard - NDSM - Amsterdam

the result of 3 1/2 years work, all weekends and 3 nights a week and in the holydays. the result satisfies

RMY yard - NDSM - Amsterdam

mithrander, now named Tigo, is sold to the former professor of simon

RMY yard - NDSM - Amsterdam

dec 1994, another winter in the unheated building shed

RMY yard - NDSM - Amsterdam

the weather outside is cold and windy, inside attitude, the boat of ewoud, we did drink a coffee

RMY yard - NDSM - Amsterdam

A helper from outer space

RMY yard - NDSM - Amsterdam

during the nights, stray cats steal our food

RMY yard - NDSM - Amsterdam

how the windscreen will be supported

RMY yard - NDSM - Amsterdam

working in the evenings is a custom habit

RMY yard - NDSM - Amsterdam

preparing the wooden frames

RMY yard - NDSM - Amsterdam

soon we will start with the woodwork

RMY yard - NDSM - Amsterdam

under the floor of the aft cabin

RMY yard - NDSM - Amsterdam

ergonomic cockpit seats, style hartman garden seat, are contructed under vaccum pressure

RMY yard - NDSM - Amsterdam

may 1995, preparing to paint the TR40

RMY yard - NDSM - Amsterdam

martien and trijnie painting one side

RMY yard - NDSM - Amsterdam

ewoud roede and eddy the other side

RMY yard - NDSM - Amsterdam

all this paint had to be sanded away?

RMY yard - NDSM - Amsterdam

the final coat is done !!

RMY yard - NDSM - Amsterdam

febr 1996, she is painted completely

RMY yard - NDSM - Amsterdam

still much work to before finishing off

RMY yard - NDSM - Amsterdam

an inside job

RMY yard - NDSM - Amsterdam

ready, next job

RMY yard - NDSM - Amsterdam

between the floats, the caravan is to be seen in which we lived for 5 years during the weekends

RMY yard - NDSM - Amsterdam

boanerges has to go outside again for another boat which is finished

RMY yard - NDSM - Amsterdam

being outside for just one day

RMY yard - NDSM - Amsterdam

one day outside and a garbage truck hit her while driving backwards to pick up the gabage

RMY yard - NDSM - Amsterdam

a 10 meter tri of same design is completely build by rhebergen

RMY yard - NDSM - Amsterdam

how to remove the rudder case from the rudder?

RMY yard - NDSM - Amsterdam

not easy but I succeed

RMY yard - NDSM - Amsterdam

shining and flying

RMY yard - NDSM - Amsterdam

the complex shape shows off

RMY yard - NDSM - Amsterdam

the distance of bending of the beam when resting on the floats. this is very little for a 10m wide trimaran

RMY yard - NDSM - Amsterdam

a bit of a mess

RMY yard - NDSM - Amsterdam

construction of the travellers of the mainstail (workload 1200kg)

RMY yard - NDSM - Amsterdam

pandiono (sea eagle in esperanto) will be the name

RMY yard - NDSM - Amsterdam

11 may 1996, christening of pandiono will happen today

RMY yard - NDSM - Amsterdam

quite a boat, 12m long by 10 meters wide and 4500kg sail ready

RMY yard - NDSM - Amsterdam

4.5 years of work in weekend and evenings and holydays, worth 10 years of my life

RMY yard - NDSM - Amsterdam

lifting a leg in rest

RMY yard - NDSM - Amsterdam

beautiful woodwork in the cabin

RMY yard - NDSM - Amsterdam

the kitchen

RMY yard - NDSM - Amsterdam

the navigator seat at the chart table

RMY yard - NDSM - Amsterdam

relaxing, but the table is not yet finished

IJsselmeer - Netherlands

in the lock of the oranjesluizen of amsterdam, for first sail trial at the IJsselmeer

IJsselmeer - Netherlands

pandiono at the IJsselmeer

amsterdam

drawing of the layout of the TR40

amsterdam

drawing of the layout of the TR40

Building pandiono (1992-1996)

Pandiono, a beautiful trimaran
